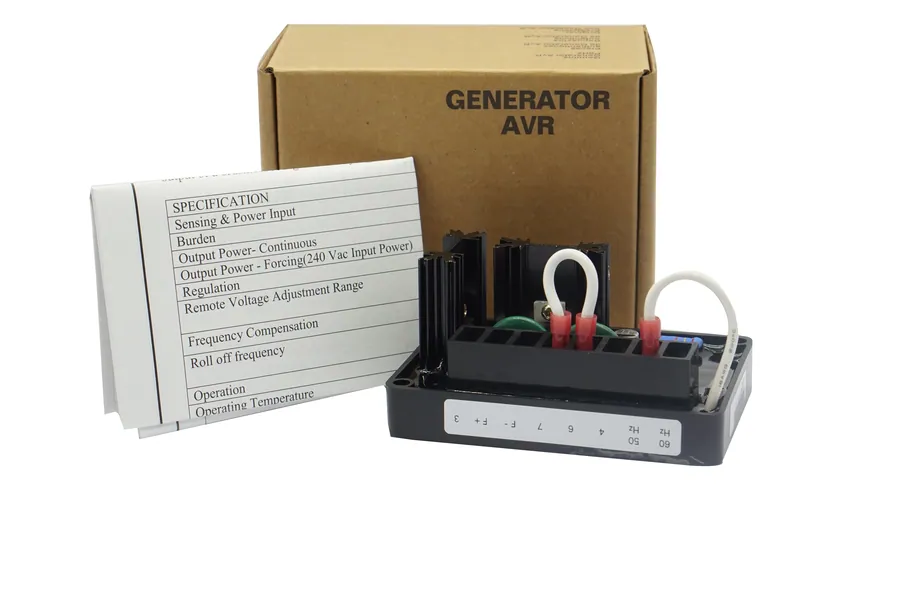

Basler BE350 Analog Generator Voltage Regulator
Model: BE350
Basler BE350 analog voltage regulator for brushless generators. Check its 190–240 Vac input/sensing range, 21 Ω minimum exciter-field resistance, and 50/60 Hz corner-frequency setup before replacement.
| Place of Origin | Fujian, China |
|---|---|
| Brand Name | POPULACE |
| Model Number | BE350 |
Applications
- Standby and prime diesel generator sets fitted with Basler alternators in telecom, data-centre and hospital backup power
- Commercial and industrial gensets requiring stable output voltage under varying load
- Alternator rewinds and rebuilds where the original AVR is obsolete or damaged
Product Description

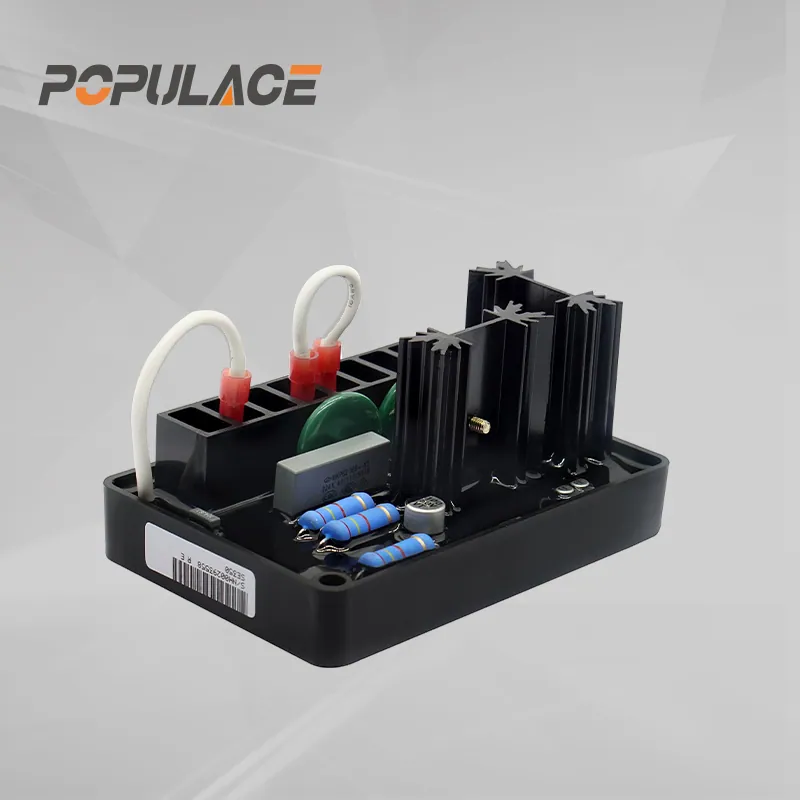

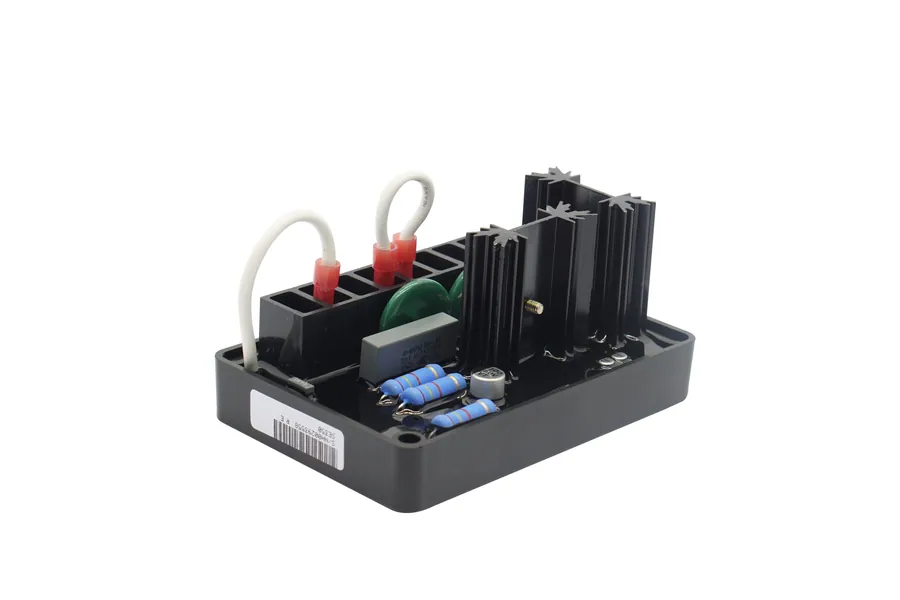

Generator Automatic Voltage Regulator Basler AVR BE350
General Features
 | Generator Automatic Voltage Regulator Basler AVR BE350 The BE350 instruction manual specifies a 190–240 Vac single-phase power and sensing input, 50/60 Hz, ±10%; see the manual for the separate 171–264 Vac power-input range. The BE350 Revision D manual covers exciter-field requirements, corner-frequency selection and installation. Confirm the generator system and wiring against the correct manual before replacement. |
 | Features * Voltage regulation < +/-1%
|
| Product Name | AVR Generator Voltage Regulator BE350 | |
| Sensing/Power input | Voltage | 190–240 Vac single-phase power/sensing input, 50/60 Hz ±10%; the installation section separately lists 171–264 Vac acceptable power input |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | Max 63Vdc |
| Current | Max 10A Continuous 4AIntermittent 7A within 60 seconds,9A For 10 Seconds | |
| Voltage Regulation | < +/-1% (with 4% engine governing) |
There are no reviews yet.
Be the first to review “Basler BE350 Analog Generator Voltage Regulator”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator AVR Not Producing Voltage: 5 Causes and How to Test Them
A generator that runs but produces no power is most often an excitation or AVR problem. Here are the five causes we see most in the field, the multimeter check for each, and when the regulator itself needs replacing.
Read Guide → Engineering GuideGenerator Rotating Rectifier Diode Testing: How to Test Forward & Reverse Diodes with a Multimeter
Comprehensive guide to testing generator rotating rectifier assemblies (RSK1001, RSK2001, RSK5001, SSAYEC432). Learn how to diagnose shorted diodes, verify surge varistors, and replace rectifiers.
Read Guide →FAQ
The BE350 manual lists 190–240 Vac, ±10%, single-phase, 50/60 Hz, ±10% for the power input and sensing input (common with the AC power input). It separately gives an acceptable power input range of 171–264 Vac in the installation section. Verify the generator circuit against the applicable manual.
The manual specifies a minimum exciter-field DC resistance of 21 Ω. A field below this limit requires evaluation under the manual's instructions before installation.
The manual lists 3.5 Adc at 73 Vdc (255 W) maximum continuous output and 5 Adc at 105 Vdc (525 W) one-minute forcing with 240 Vac power input. Verify the alternator and excitation circuit against the manual.
The manual says the factory jumper is set for 50 Hz operation with a 45 Hz corner frequency. For 60 Hz operation and a 55 Hz corner frequency, move the corner-frequency jumper to the 60 Hz terminal, following the manual.
A Basler BE350 instruction manual (Revision D, dated July 2026) was supplied for this product mapping. Ask support to confirm the exact model-specific document and revision before installation.
Send the BE350 nameplate, generator voltage and frequency, exciter-field resistance, and the existing regulator terminal/control layout. Confirm wiring against the BE350 manual before energizing.
