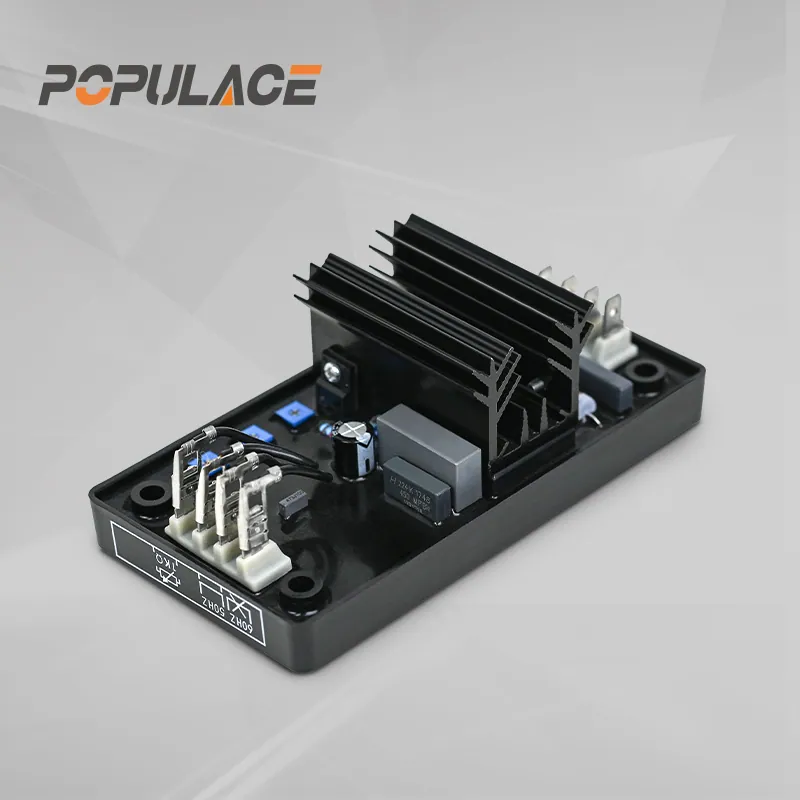

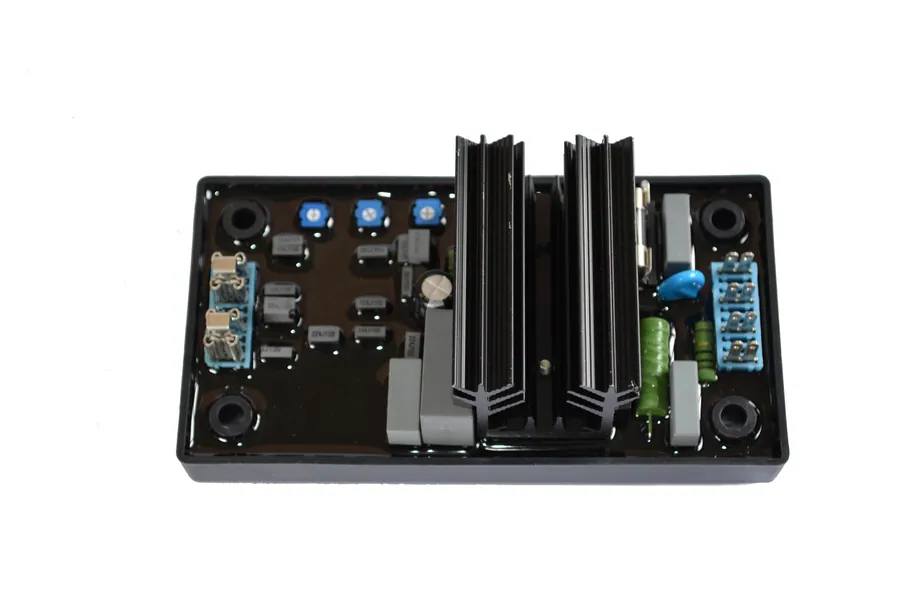

Generator Automatic Voltage Regulator Leroy Somer AVR R230
Model: R230
Generator Automatic Voltage Regulator Leroy Somer AVR R230,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | R230 |
| Overall Size | 155×90×60mm |
| Weight | 0.3kg |
| Certification | CE,ISO9001 |
Generator Automatic Voltage Regulator Leroy Somer AVR R230
General Features
 | Generator Automatic Voltage Regulator Leroy Somer AVR R230 220v voltage regulator AVR R230 for power generator is a half-wave phase controlled thyristor type Auto Voltage Regulator and forms part of the excitation system for a brushless generator. |
 | Features Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of ± 1.5%. |
| Product Name | Generator Automatic Voltage Regulator Leroy Somer AVR R230 | |
| Sensing/Power input | Voltage | Max 100VDC at 120VCD input |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | Max. 90 Vdc @ 207 Vac input |
| Current | Continous 8A,intermittent 10A-10S | |
| Voltage Regulation | <±1% RMS with 4% engine governing |

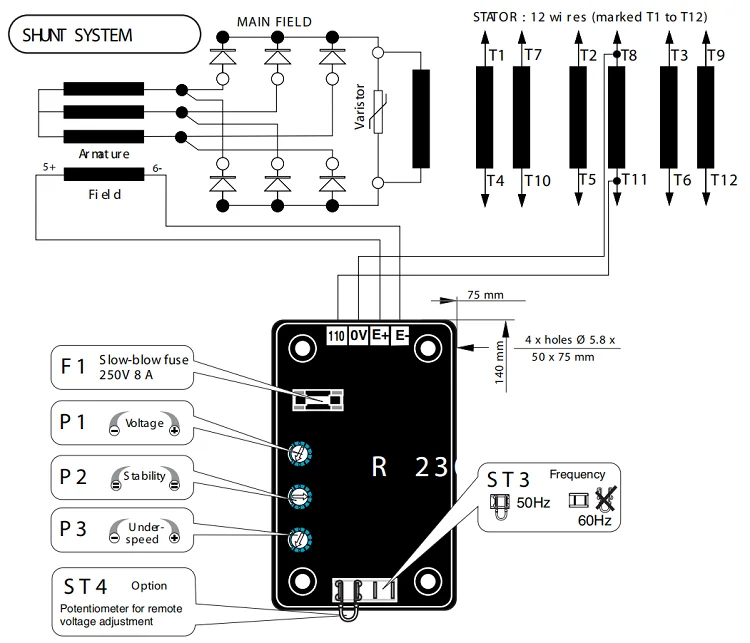

Connection Diagram
