Name: Generator Automatic Voltage Regulator Maralli AVR M40FA640A
Brand: POPULACE
SKU: M40FA640A

Warranty

13 months

Place of Origin

Fujian, China

Brand Name

POPULACE

Model Number

M40FA640A

Overall Size

230×170×50mm

Weight

0.9kg

Certification

CE,ISO9001

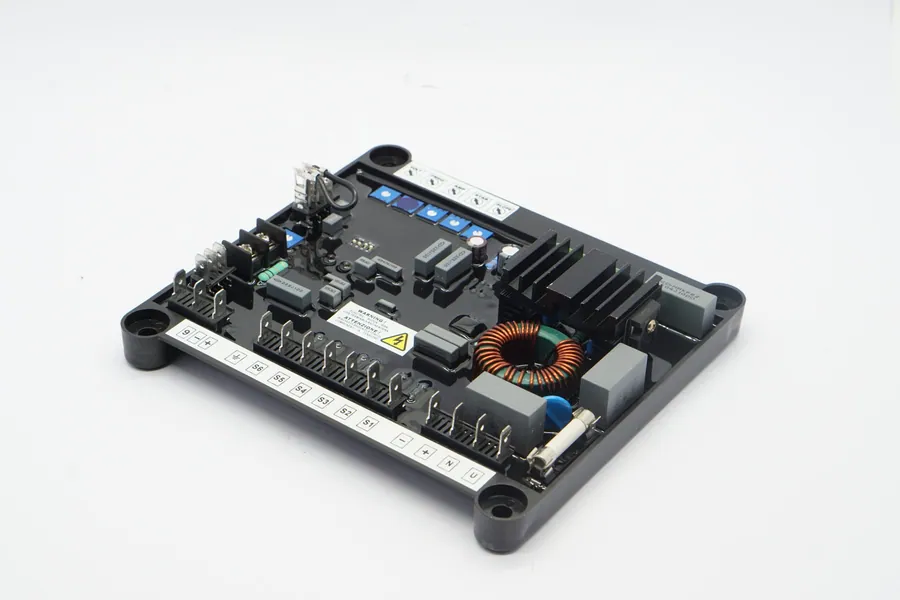

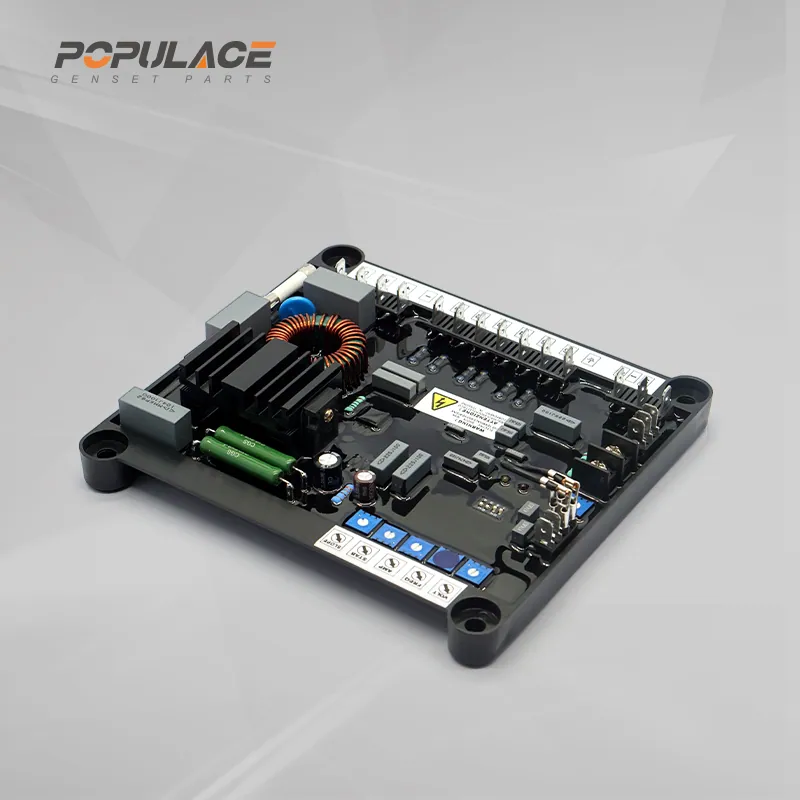

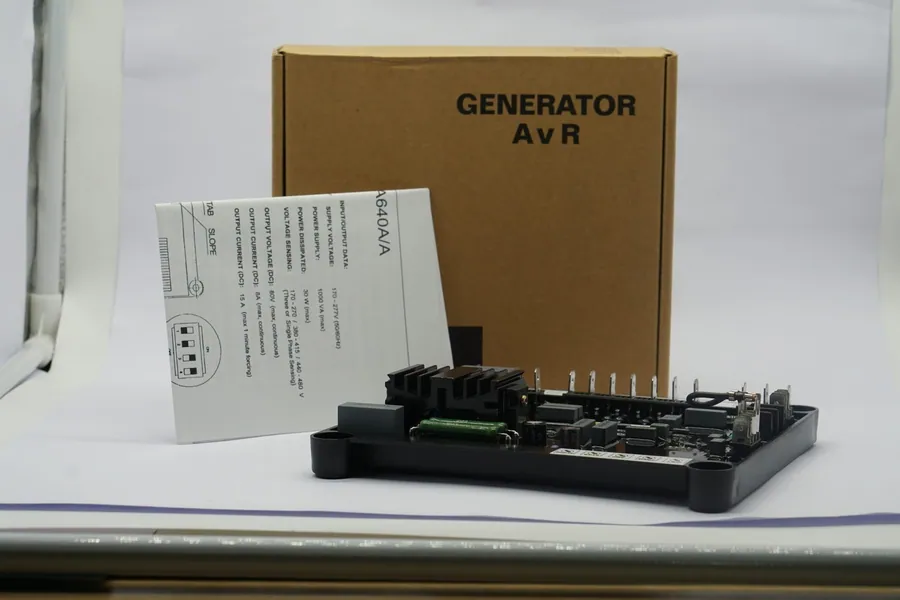

Generator Automatic Voltage Regulator Maralli AVR M40FA640A

General Features

Generator Automatic Voltage Regulator Maralli AVR M40FA640A

Generator AVR M40FA640A For Diesel Generator is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.

Features

Brushless Generator AVR M40FA640A For Alternator Parts suitable for Three-phase Synchronous Generators. Which is provided with internal circuits in order to reduce the excitation, when running at low speed, in order to avoid damages to the excitation system of the generator.

Supply Voltage	170-277V(50/60Hz)
Power Supply	1000 VA (max)
Power Dissipated	30W (max)
Voltage Sensing	170-270V(1/3 – phase)
Output Voltage(DC)	80V (max, continuous)
Output Current(DC)	8A (max, continuous)
Output Current(DC)	15A (max 1 minute forcing)
Regulation Accuracy	+/-0.5% steady state conditions, for rated voltage and PF
Voltage Drift	+/-0.5% of voltage change for 50°C T amb change
Response Time	1 cycle (12ms-16.6ms)
Operating Temperature	-30°C- +70°C
exciter Field Resistance	3.5Ω (min)-20Ω (max)
