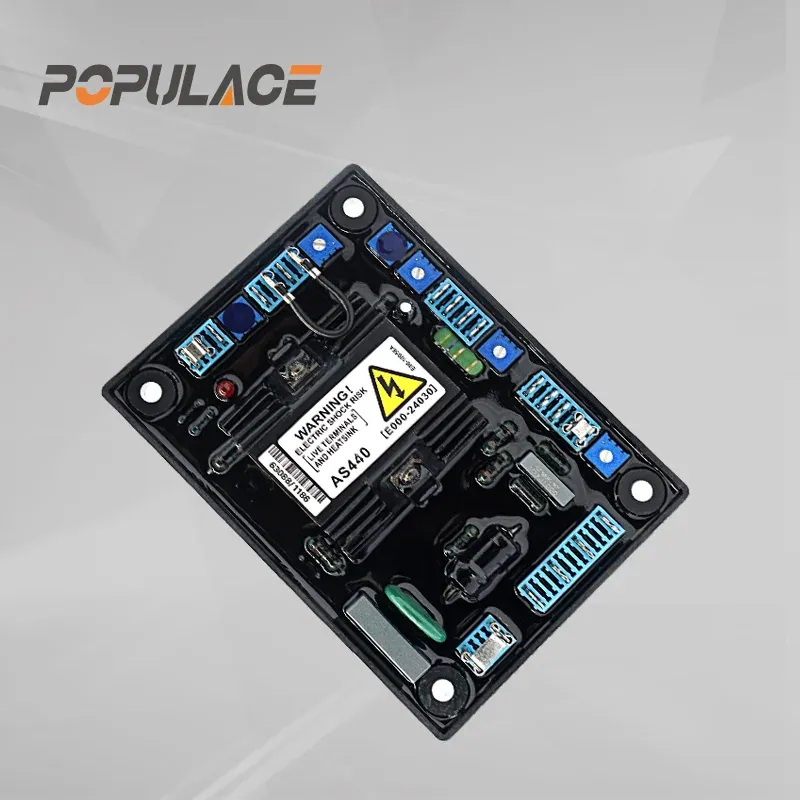

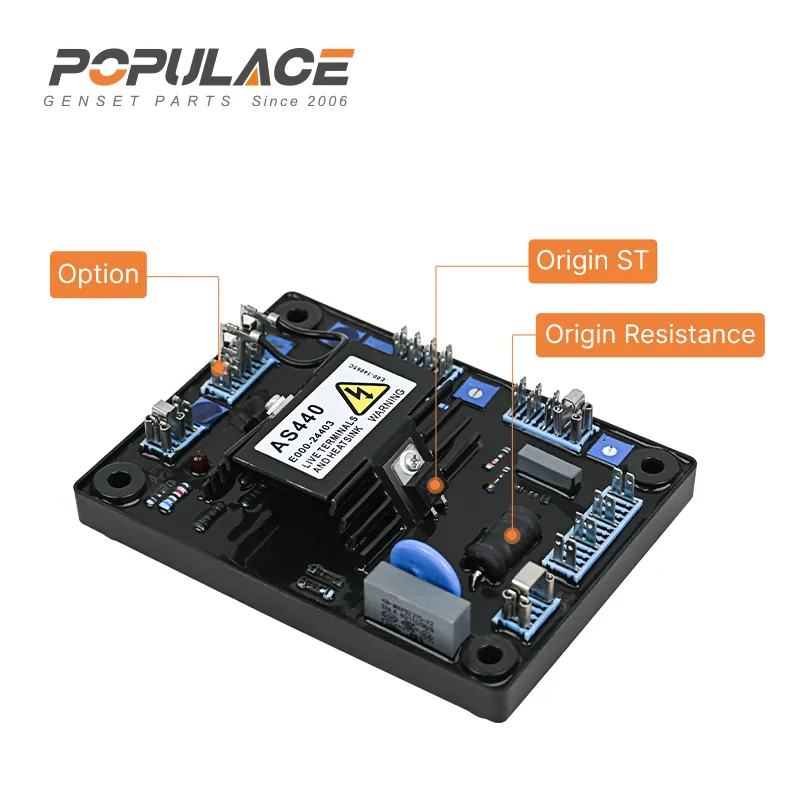

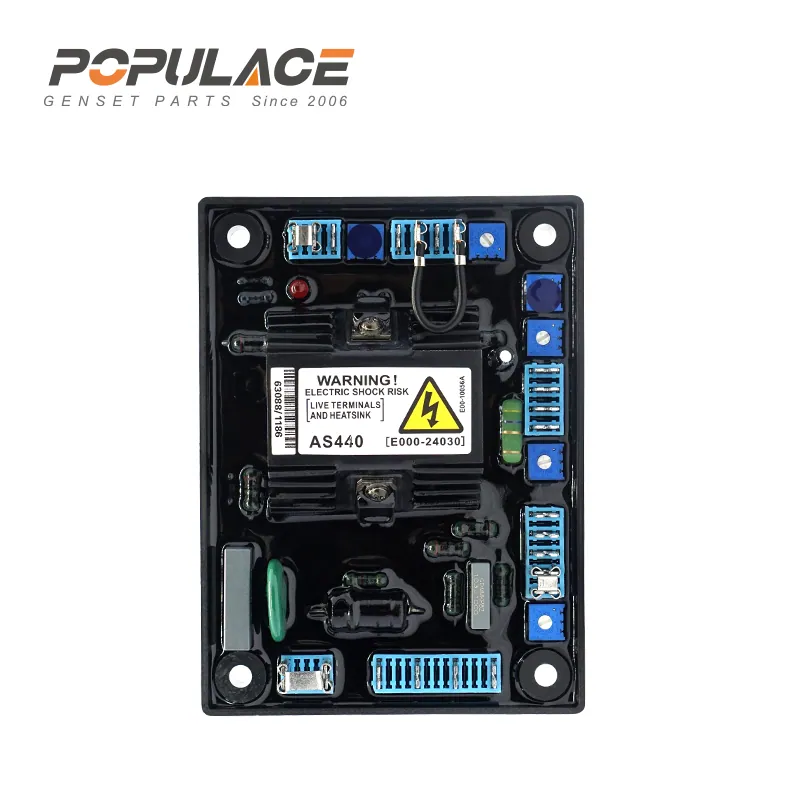

Generator Automatic Voltage Regulator Stamford AVR AS440
Model: AS440
Stamford AVR AS440,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | AS440 |
| Overall Size | 175×150×65mm |
| Weight | 0.4kg |
| Certification | CE,ISO9001 |
| Technical Data | 1phase or 3 phase 220V |
| Capacitor Color | Blue Capacitor, Red for option |
Generator Automatic Voltage Regulator Stamford AVR AS440
General Features
 | Generator Automatic Voltage Regulator Stamford AVR AS440 As440 is a half wave phase controlled thyristor type AVR and form part of the excitation system for a brushless generator. -The design employs Surfacce Mount Technology for high intergration of feature in a small footprint AVR. -The AVR has the facility for droop CT connection,to allow parallel running with other sinilarty equipped generators. |
 | Features *Voltage regulation < ± 1%. * Soft start voltage ramping. * Sensing voltage loss protection. * 120 or 240 Vac sensing, jumper selectable. * Under frequency roll off protection. * With under frequency LED indicator. |
| Product Name | Automatic Voltage Regulator 220 volt 1 Phase Generator AVR AS440 | |
| Sensing/Power input | Voltage | 120(95-132Vac)240(190-264Vac),1 phase 2 wire jumper selectable |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | Max. 90 Vdc @ 207 Vac input |
| Current | Continuous 4A,Intermittent 6A for 10 seconds | |
| Voltage Regulation | < +/-1% (with 4% engine governing) |

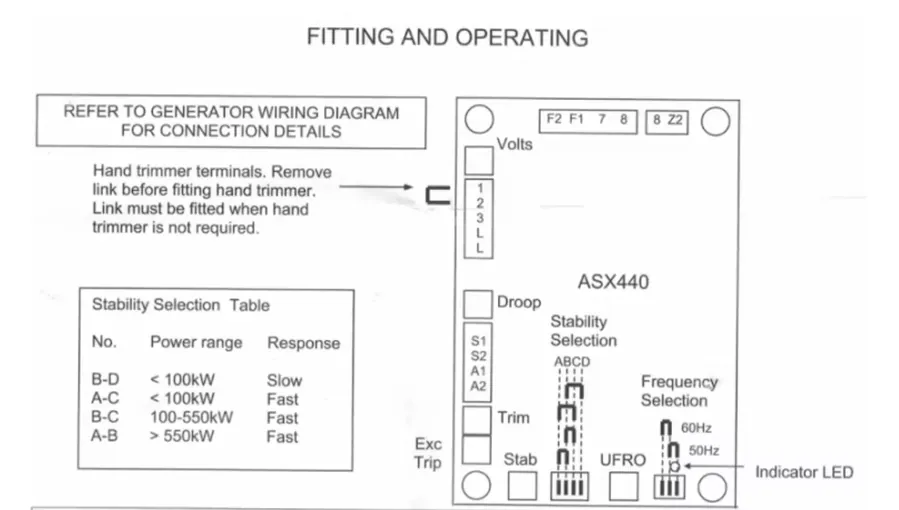

Connection Diagram
