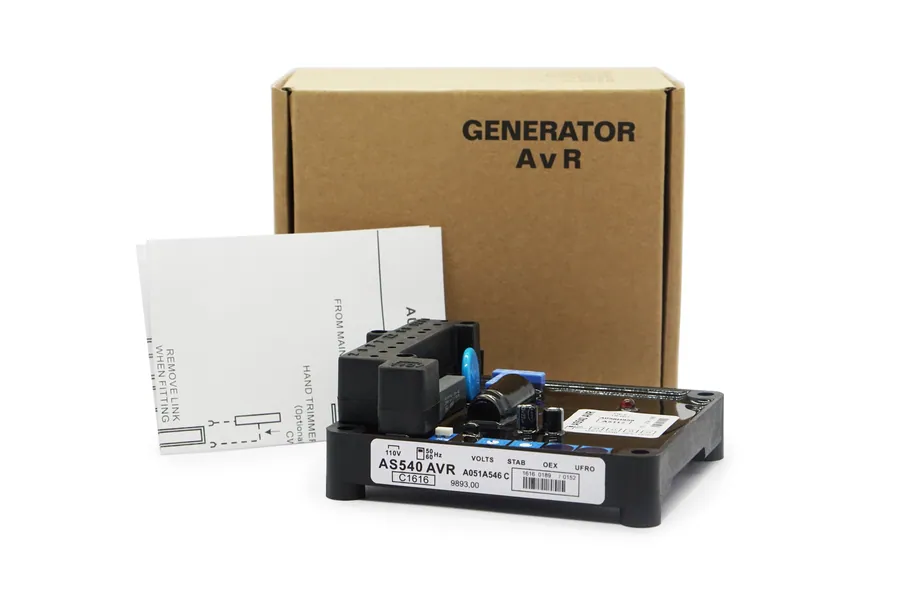

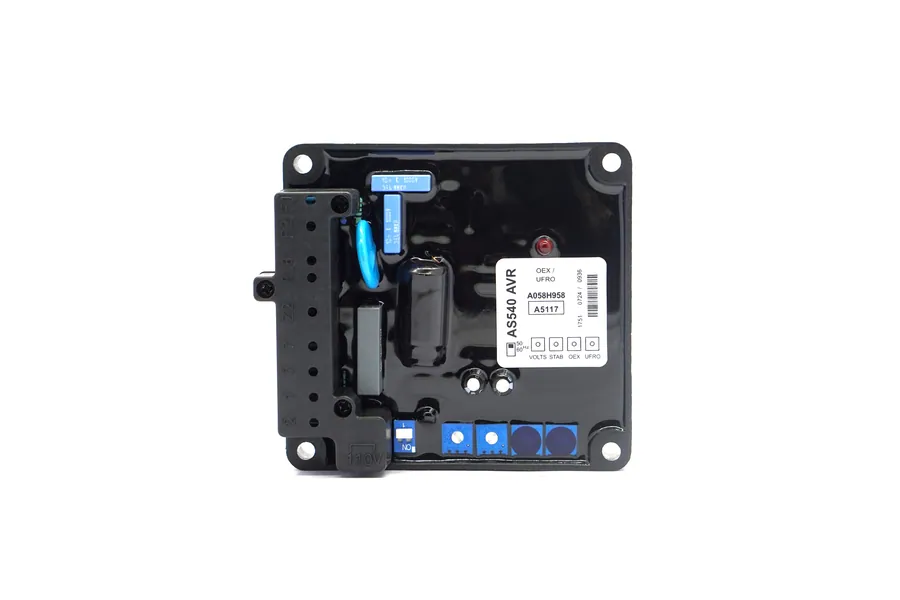

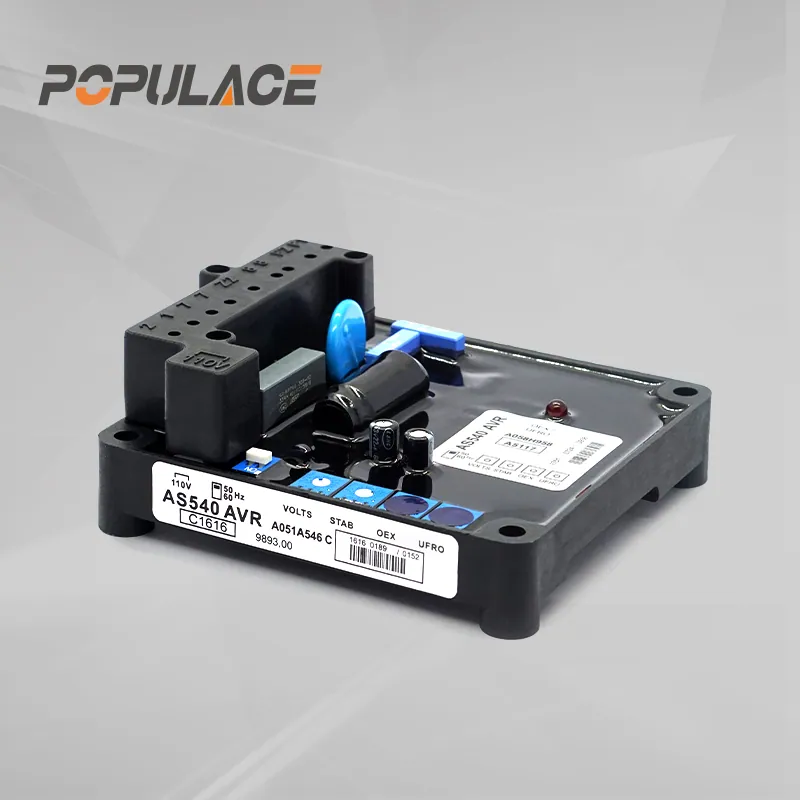

Generator Automatic Voltage Regulator Stamford AVR AS540
Model: Stamford AVR AS540
Generator Automatic Voltage Regulator Stamford AVR AS540,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | Stamford AVR AS540 |
| Overall Size | 175×15×65mm |
| Weight | 0.38kg |
| Certification | CE,ISO9001 |
Generator Automatic Voltage Regulator Stamford AVR AS540
General Features
 | Generator Automatic Voltage Regulator Stamford AVR AS540 AS540 AVR provides closed loop control by sensing the alternator output voltage at the main stator windings and adjusting theexciter the stator field strength. Voltage included in the exciter rotor rectified by the rotating diodes, magnetises the rotating main field which includes voltage in the mani stator windings. A seff-excited AVR receives power from the alternator output terminals or a special auxiliary winding in the main stator winding. |
 | Features * 95 VAC to 130 VAC 1 phase or 190 VAC to 265 VAC 1 phase
*Max. 82 Vdc @ 200 Vac input *Continuous 4A, Transient 7.5A for 10 seconds |
| Product Name | Automatic Voltage Regulator Generator AVR AS540 | |
| Sensing/Power input | Voltage | 95 VAC to 130 VAC 1 phase or 190 VAC to 265 VAC 1 phase |
| Frequency | 50/60 Hz jumper selectable | |
| Output | Voltage | Max. 82 Vdc @ 200 Vac input |
| Current | Continuous 4A, Transient 7.5A for 10 seconds | |
| Voltage Regulation | < +/-1% (with 4% engine governing) |
