POPULACE
Generator Battery Charger Datakom Charger 12V/24V Auto Select BC-5A-M
Model: BC-5A-M
Datakom BC-5A-M switch-mode battery charger with automatic 12/24 V selection, 5 A continuous output and 170–300 Vac input range. Designed for enclosed-panel mounting; verify battery and installation requirements before use.
| Place of Origin | Fujian, China |
|---|---|
| Brand Name | POPULACE |
| Model Number | BC-5A-M |
| Overall Size | 106 × 115 × 57 mm |
| Weight | 260 g (approx.) |
| Battery output selection | Automatic 13.50 / 27.00 V DC |
| Continuous output current | 5 A DC |
| AC input range | 170–300 V AC |
| Input frequency | 45–68 Hz |
| Maximum continuous output power | 135 W |
| Mounting | Vertical mounting inside an electrical panel; not for standalone use |
Applications
- Maintaining starter batteries on standby generator sets between test runs
- 12 V / 24 V battery banks on Datakom engine packages in commercial and industrial sites
- Warehouse and telecom installations with long float-charge duty
Product Description

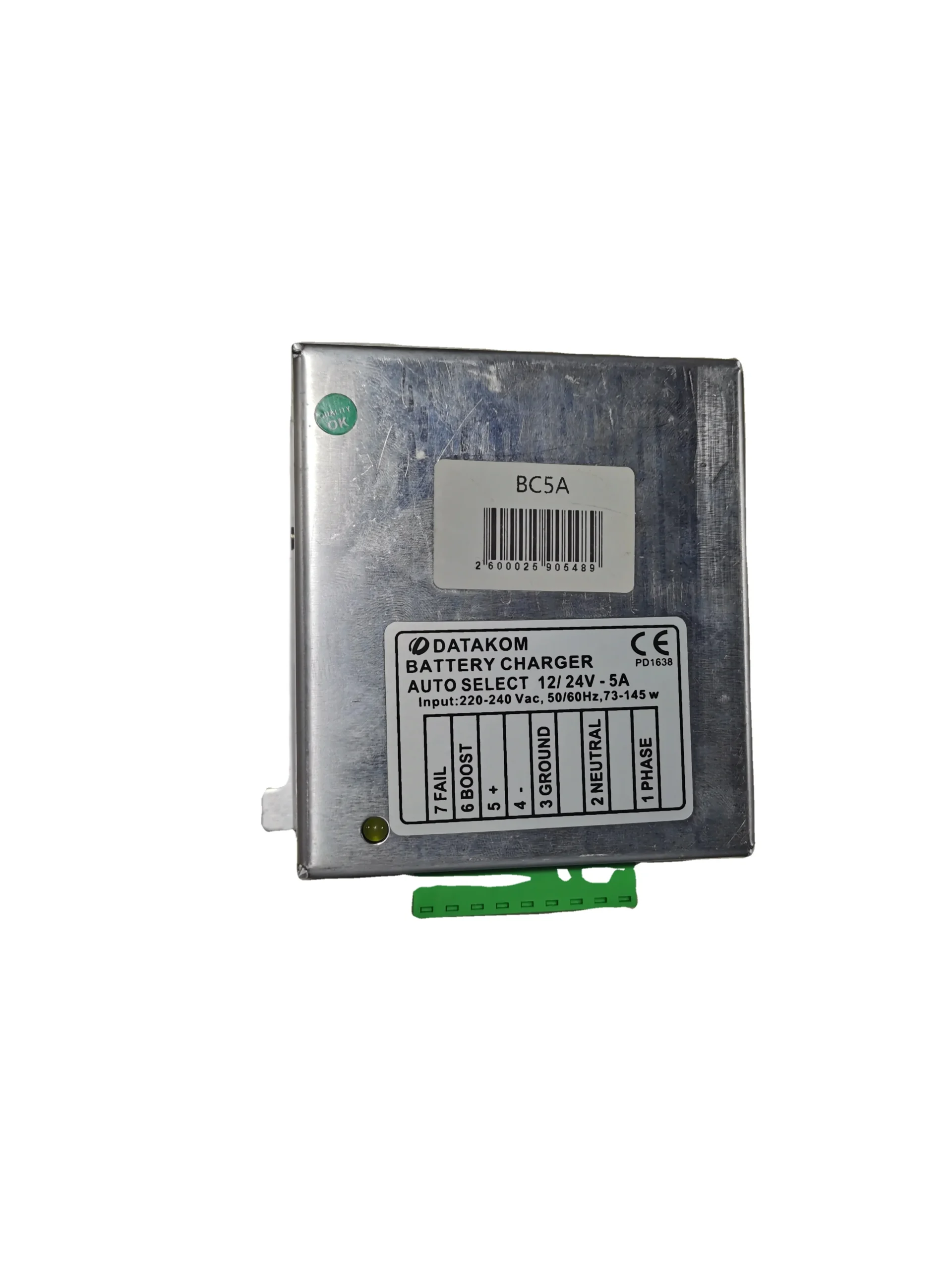

Datakom BC-5A-M switch-mode battery charger
 | The product data sheet describes automatic selection between 12 V and 24 V battery systems, a low-battery-voltage monitor with dry-contact signaling, charging-current LEDs and no current drain when AC input is off. It also lists short-circuit and reverse-polarity protection. |
 | Documented specifications
|
| AC input range | 170–300 V AC; 45–68 Hz |
| Maximum AC input current | 2.0 A RMS at 170 V AC |
| Automatic DC output selection | 13.50 V or 27.00 V |
| Continuous output current | 5.0 A DC |
| Maximum continuous output power | 135 W |
| Protection | Overload current limiting and over-temperature protection |
| Mounting | Vertical mounting inside an electrical panel; not for standalone use |
| Dimensions and weight | 106 × 115 × 57 mm; approximately 260 g |
There are no reviews yet.
Be the first to review “Generator Battery Charger Datakom Charger 12V/24V Auto Select BC-5A-M”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Deep Sea Generator Controller Troubleshooting: Alarm Codes, Wiring & Start Failure Guide
Practical guide to diagnosing Deep Sea generator controllers (DSE7320, DSE6120, DSE4520). Learn how to trace common alarm codes, verify terminal wiring, and resolve fail-to-start faults.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
Yes. The manual specifies automatic selection of 13.50 V DC or 27.00 V DC output, depending on the battery connection. No manual voltage selection is described.
The supplied product manual lists 170–300 V AC input, 45–68 Hz input frequency, 5.0 A DC continuous output and 135 W maximum continuous output. Follow the unit label and manual for installation.
The charger manual specifies vertical mounting inside an electrical panel and says the charger is not for standalone use. It also calls for external fast-type fuses on supply and DC outputs; follow the manual and local electrical regulations.
The manual describes current-limiting overload protection and output-current reduction when the unit overheats. Keep airflow and panel temperature within the documented installation conditions.
A BC-5A-M product manual was supplied for this page mapping. A verified public download file is not currently attached to this page; contact support to confirm the exact document revision.
Provide the battery nominal voltage and chemistry, charger input supply, panel mounting arrangement and BC-5A-M nameplate. Confirm the charger and battery charging requirements before installation.
