Datakom DKG307 Automatic Mains Failure Generator Controller
Model: DKG307
Datakom DKG307 AMF controller available in MPU and CANBUS versions. Confirm the engine interface, panel dimensions, supply and wiring variant before ordering; do not use one version's connection details for the other.
| Place of Origin | Fujian, China |
|---|---|
| Brand Name | POPULACE |
| Model Number | DKG307 |
| Overall Size | 172 × 134 × 46 mm |
| Weight | 340 g (approx.) |
| Panel cut-out | 151 × 111 mm minimum |
| Alternator voltage | 0–300 V AC phase-to-neutral |
| Alternator frequency | 0–100 Hz |
| DC supply | 9–33 V DC |

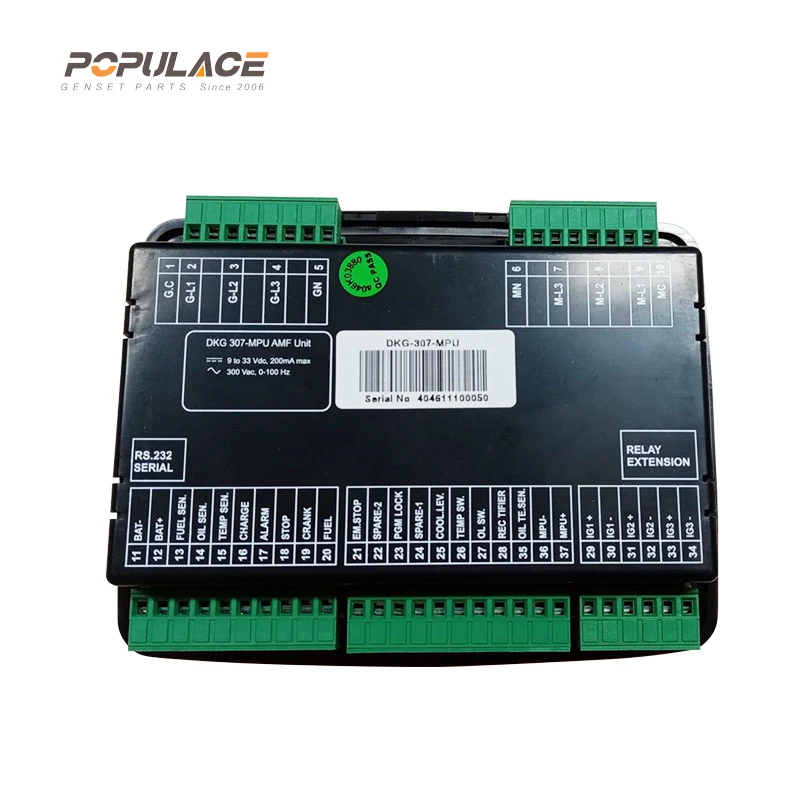

| MPU input | 0.5–30 V AC; MPU version only |
| CAN interface | J1939 ECU connection; CANBUS version only |
Applications
- Open and enclosed Datakom-based generator sets needing automatic start/stop, protection and load management
- Mains-failure standby systems in commercial buildings and industrial plants
- Retrofit or replacement of failed Datakom modules on service fleets
Product Description
Datakom DKG307 Automatic Mains Failure Controller
The DKG307 supports single-genset standby and dual-genset mutual standby. The controller is available in distinct MPU and CANBUS versions: CANBUS connects to ECU-controlled engines over J1939; the MPU version uses a magnetic pickup input. Verify the version label before wiring.
- Overall dimensions: 172 × 134 × 46 mm; weight: approximately 340 g
- Minimum panel cut-out: 151 × 111 mm
- DC supply range: 9.0–33.0 V DC
- Alternator voltage: 0–300 V AC phase-to-neutral; frequency: 0–100 Hz
- MPU input: 0.5–30 V AC; CANBUS version uses J1939 ECU connection
- Functions described in the product manual include time-stamped event logging, RS-232 telemetry, RAINBOW and MODBUS communication
Confirm the specific MPU/CANBUS user manual and connection diagram before installation; do not infer terminals across versions.
There are no reviews yet.
Be the first to review “Datakom DKG307 Automatic Mains Failure Generator Controller”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Deep Sea Generator Controller Troubleshooting: Alarm Codes, Wiring & Start Failure Guide
Practical guide to diagnosing Deep Sea generator controllers (DSE7320, DSE6120, DSE4520). Learn how to trace common alarm codes, verify terminal wiring, and resolve fail-to-start faults.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
The manuals identify separate MPU-input and CANBUS versions. CANBUS connects to an ECU-controlled electronic engine over J1939; the MPU version uses a magnetic pickup input. Confirm the exact variant label and engine interface before ordering.
The DKG307 product and user manuals list an overall size of 172 × 134 × 46 mm and a minimum panel cut-out of 151 × 111 mm. Verify the actual panel and mounting details before replacement.
The manuals list 9.0–33.0 V DC supply, alternator voltage up to 300 V AC phase-to-neutral and alternator frequency 0–100 Hz. Check the exact wiring diagram and installation manual for your version.
The product manual describes time-stamped event logging of the last 100 events, measured generator parameters, RS-232 telemetry, and RAINBOW/MODBUS communication. Features may depend on configuration and version.
A DKG307 product manual and user manual were supplied for this page mapping, but a verified public download file is not currently attached to this page. Contact support to confirm the correct MPU/CANBUS document and revision.
Provide the unit label, MPU or CANBUS version, engine/ECU details, panel cut-out and the existing terminal wiring. Confirm the version-specific connection diagram before installation.
