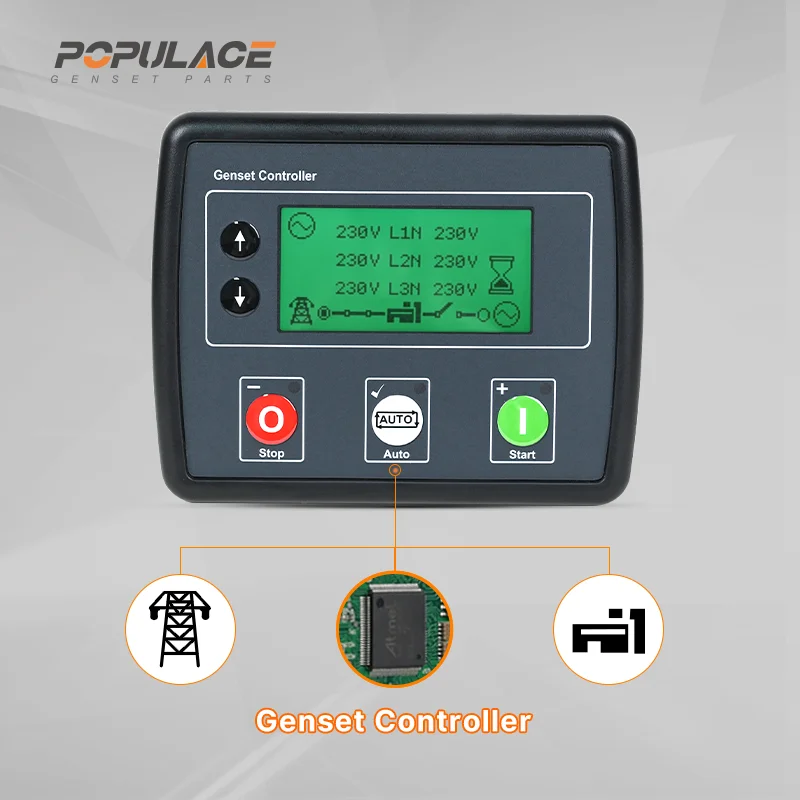

Name: Deep Sea Controller Auto Start Control Module DSE4520 for generator
Brand: POPULACE
SKU: DSE4520

Warranty

13 months

Place of Origin

Fujian, China

Brand Name

POPULACE

Model Number

DSE4520

Overall Size

140 x 113x 43 mm

Certification

CE,ISO9001

Panel Cutout Size

118 x 92 mm

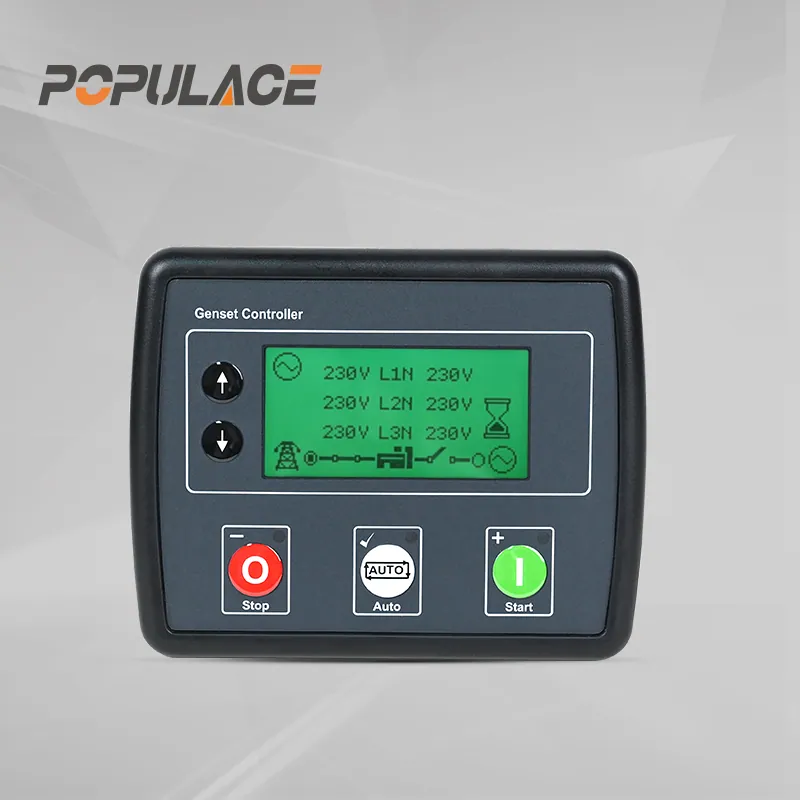

Deep Sea Controller Auto Start Control Module DSE4520 for generator

Deep Sea Controller Auto Start Control Module DSE4520 for generator

The DSE4520 MKII is a compact Auto Mains (Utility) Failure Control Module that has been developed to provide an outstanding range

of features within a compact enclosure.

THE MODULE CAN BE CONFIGURED FOR USE AS AN AUTO START CONTROL MODULE.

Features

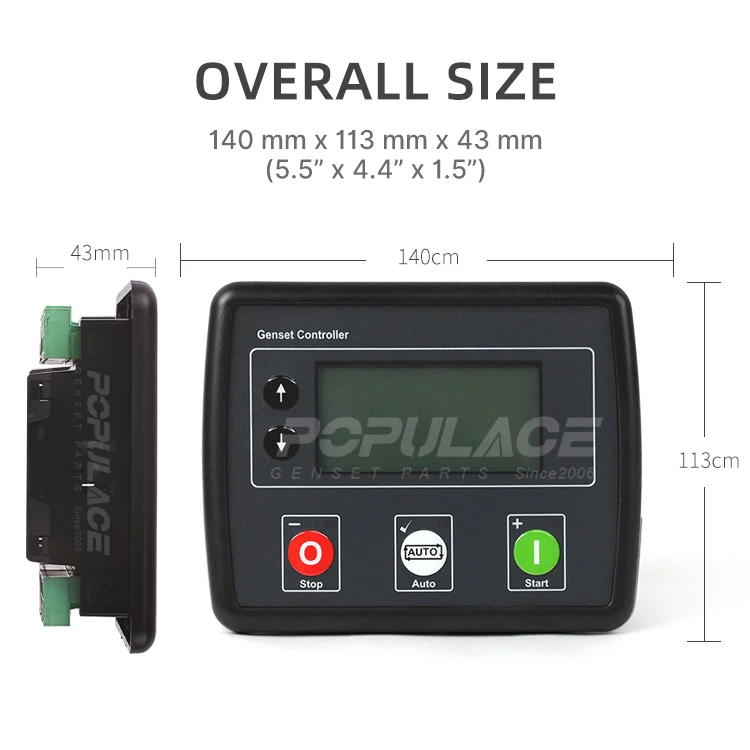

*OVERALL SIZE

140 mm x 113 mm x 43 mm (5.5” x 4.4” x 1.5”)

*PANEL CUTOUT SIZE

118 mm x 92 mm (4.6″ x 3.6″)

*MAXIMUM PANEL THICKNESS

8.0 mm (0.3”)

*WEIGHT

0.26kg

*PRODUCT VARIANTS

4520-05 – 4520 Auto Mains (Utility) Failure Control Module (Ct, Rtc)

Product Name	Deep Sea Controller Auto Start Control Module DSE4520 for generator
MAINS (UTILITY)	VOLTAGE RANGE	15 V to 415 V AC (Ph to N)26 V to 719 V AC (Ph to Ph)
FREQUENCY RANGE	3.5 Hz to 75 Hz
OUTPUTS	OUTPUT A (FUEL)	10 A short term, 5 A continuous, at supply voltage
OUTPUT B (START)	10 A short term, 5 A continuous,at supply voltage
MAGNETIC PICK-UP	+/- 0.5 V to 70 V
