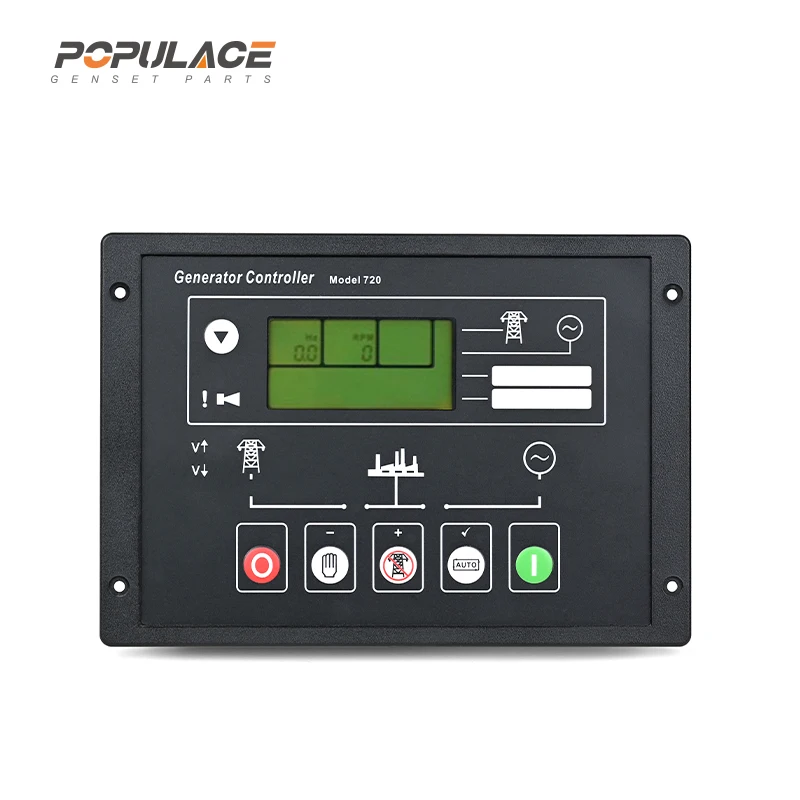

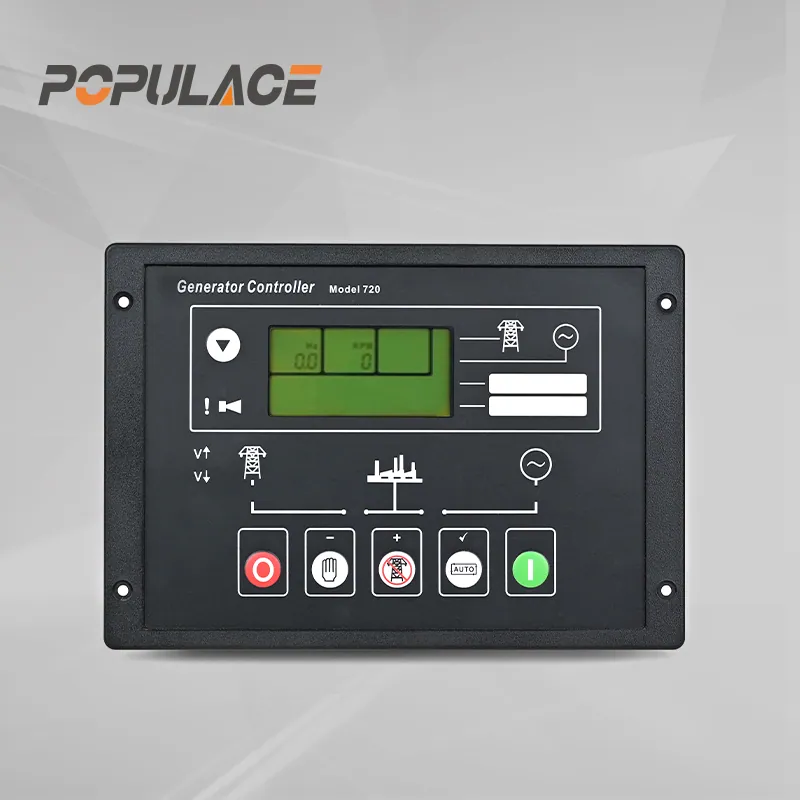

Deep Sea Controller Auto Start Control Module DSE720 for generator
Model: DSE720
Compatible DSE720 generator controller replacement. Confirm the exact module variant, panel and terminal layout before ordering; ask support to check available documentation.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE720 |
| Overall Size | 209 x 146 x 30.3 mm |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 182 x 137 mm |
| MOQ | 1 pc |
| Lead time | 2-3 days after payment (in stock), 3-7 days for production batches |
Applications
- Open and enclosed Deep Sea-based generator sets needing automatic start/stop, protection and load management
- Mains-failure standby systems in commercial buildings and industrial plants
- Retrofit or replacement of failed Deep Sea modules on service fleets
Product Description
Deep Sea Controller Auto Start Control Module DSE720 for generator
General Features
 | Deep Sea Controller Auto Start Control Module DSE720 for generator Auto Mains (Utility) Failure Control Module The DSE720 is an Automatic Mains (Utility) Failure Control Module suitable for a wide variety of single diesel or gas genset applications. Monitoring an advanced list of engine parameters, the DSE720 will automatically shut down the engine or indicate a warning, on detection of a fault |
 | Features *PC/Front panel configuration * Digital and analogue inputs *Digital outputs * Automatic mains (utility) supply monitoring (DSE720 only) * Automatic shutdown or warning when fault conditions are detected * Automatic/Manual/Remote start* Engine pre-heat * Engine monitoring and protection features * Protected Solid State (PSS) outputs * Tamper-proof engine hours counter |
| Product Name | Deep Sea Controller Auto Start Control Module DSE720 for generator | |
| DC Supply | 8.0V to 35V Continuous. | |
| Cranking Dropouts | Able to survive 0V for 50mS, providing supply was at least 10V before dropout and supply recovers to 5V. This is achieved without the need for internal batteries. | |
| Typical Standby Current | 145mA at 12V. 150mA at 24V | |
| Max. Operating Current | 180mA at 12V. 190mA at 24V | |
| Alternator / Mains (Utility) Input Frequency | 50Hz – 60 Hz at rated engine speed |

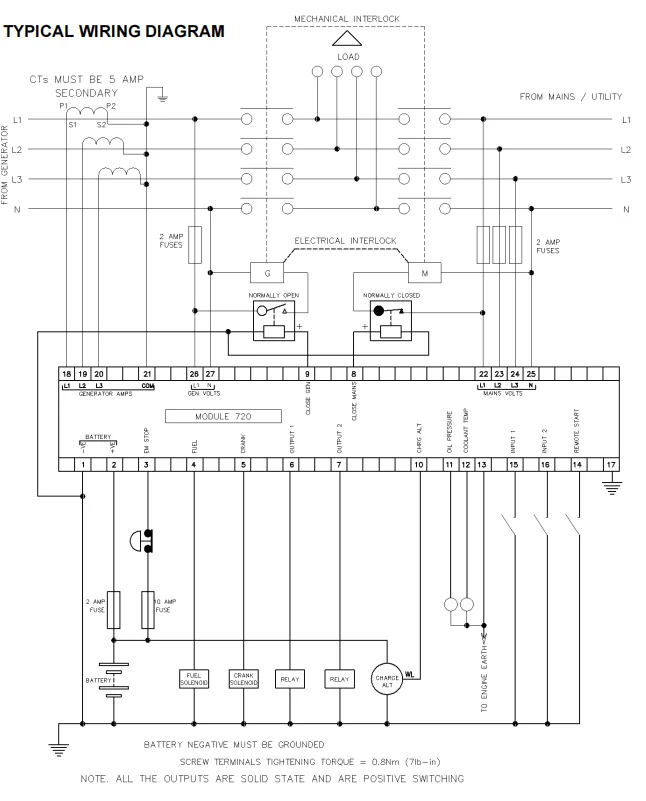

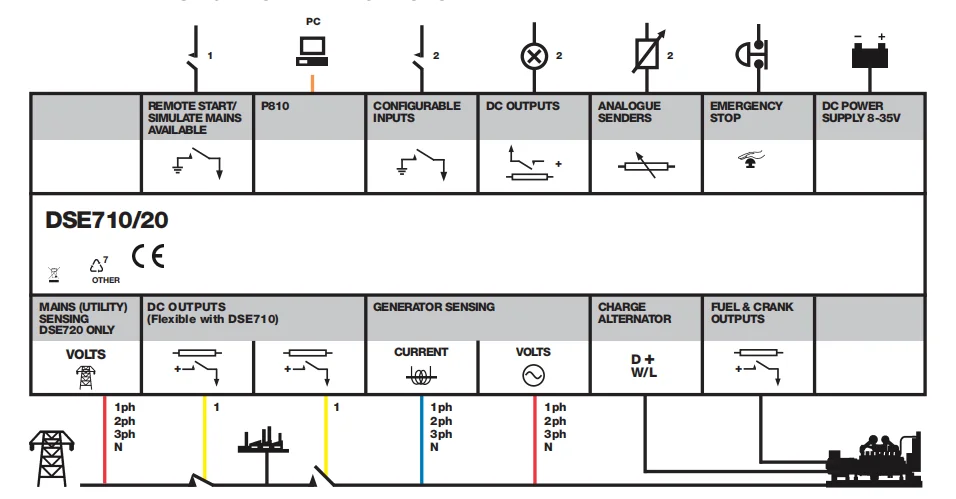

Connection Diagram
There are no reviews yet.
Be the first to review “Deep Sea Controller Auto Start Control Module DSE720 for generator”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Deep Sea Generator Controller Troubleshooting: Alarm Codes, Wiring & Start Failure Guide
Practical guide to diagnosing Deep Sea generator controllers (DSE7320, DSE6120, DSE4520). Learn how to trace common alarm codes, verify terminal wiring, and resolve fail-to-start faults.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
Send the exact controller label and variant, the generator and engine model, panel dimensions, connector/terminal photos and the alarm or symptom. Compatibility must be checked against the existing panel and exact variant before ordering.
No. Use documentation for the exact DSE720 variant and installation. Do not infer terminal assignments from DSE7320, DSE6110 or another model.
Contact technical support with a clear controller label and panel photo. We will check the variant and whether applicable model-specific documentation is available; confirm it matches your installation before using it.
Yes. Every module is powered up, I/O-checked and firmware-verified on our test bench before dispatch.
Deep Sea controller DSE720: overall size 209 x 146 x 30.3 mm. Send your panel or packing constraints and we confirm fit.
Deep Sea controller DSE720 is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Deep Sea controller DSE720 carries CE,ISO9001 certification from our ISO9001-certified Xiamen facility.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
