Deep Sea Controller Auto Start Control Module DSE7310 for generator
Model: DSE7310
Deep Sea Controller Auto Start Control Module DSE7310,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE7310 |
| Overall Size | 245 x 184 x 51 mm |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 220 x 160 mm |
Deep Sea Controller Auto Start Control Module DSE7310 for generator
General Features
 | Deep Sea Controller Auto Start Control Module DSE7310 for generator The DSE7310 MKII is a powerful, new generation auto start genset control module with a highly sophisticated level of new features and functions, presented in the usual DSE user-friendly format. Suitable for a wide variety of single, diesel or gas Gen-set applications. |
 | Features OVERALL SIZE: 245 mm x 184 mm x 51 mm (9.6″ x 7.2″ x 2.0″) PANEL CUTOUT SIZE: 220 mm x 160 mm (8.7″ x 6.3″) MAXIMUM PANEL THICKNESS: 8.0 mm (0.3″) PRODUCT VARIANTS: 7310-03 – 7310 MKII Autostart Control Module |
| Product Name | Generator Controller 7310 | |
| Continuous voltage rating | 8 to 35 V Continuous. | |
| Cranking Dropouts | Able to survive 0 V for 50mS, providing supply was at least 10 V before dropout and supply recovers to 5 V. | |
| Maximum operating current | 340mA at 12 v, 160mA at 24V | |
| Maximum standby current | 160 ma at 12 V. 80mA at 24V | |
| Charge Fail/ Excitation Range | 0 v to 35 v |

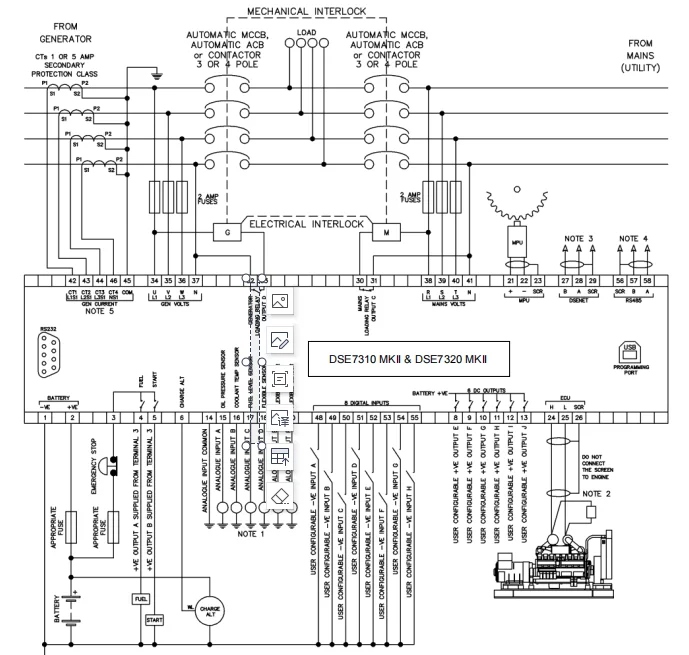

Connection Diagram
