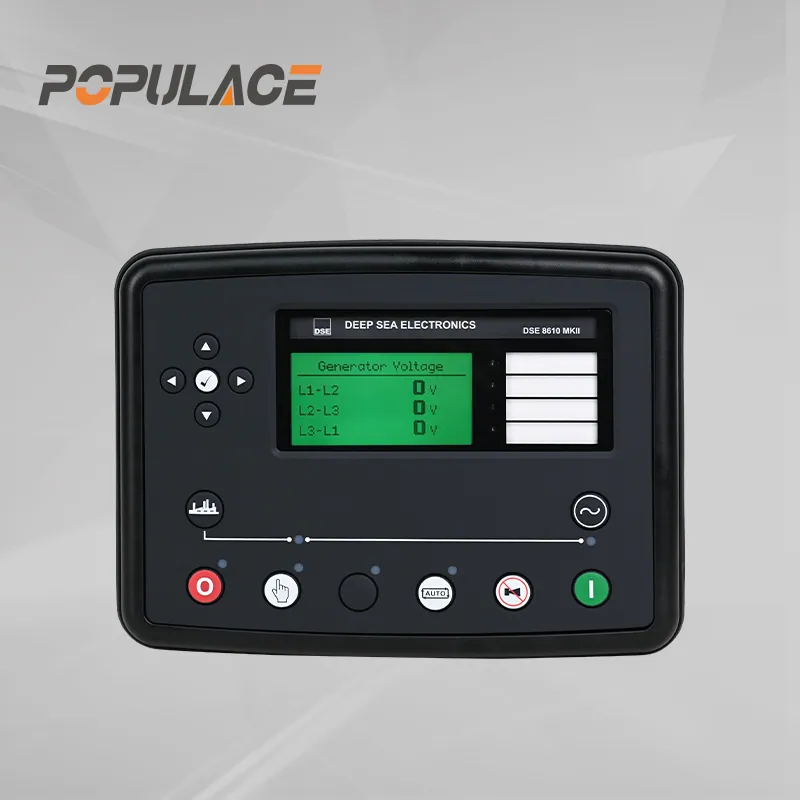

Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator
Model: DSE8610 MKII
Deep Sea Controller DSE8610 MKII,factory price with CE verified.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | DSE8610 MKII |
| Overall Size | 245 mm x 184 mm x 51 mm (9.6' x 7.2' x 2.0') |
| Certification | CE,ISO9001 |
| Panel Cutout Size | 220 mm x 160 mm (8.7' x 6.3') |
Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator

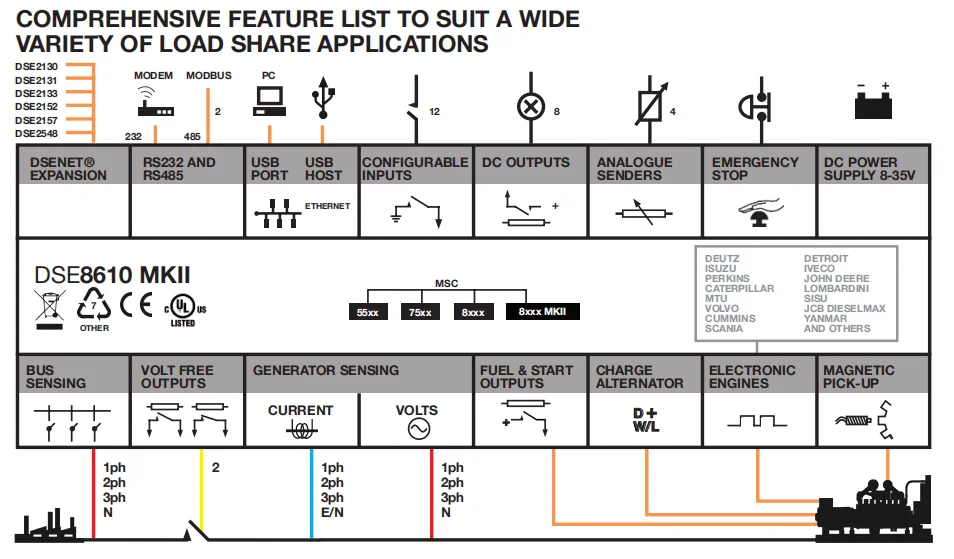

General Features
 | Deep Sea Controller Auto Start Control Module DSE8610 MKII for generator The DSE8610 MKII represents the latest in complex load sharing & synchronising control technology. Designed to handle the most complex grid type generator applications the DSE8610 MKII control module is packed with multiple features and benefits that are unrivalled across the generator control industry. |
 | Features * OVERALL SIZE 245 mm x 184 mm x 51 mm (9.6″ x 7.2″ x 2.0″) *PANEL CUTOUT SIZE 220 mm x 160 mm (8.7″ x 6.3″) *MAXIMUM PANEL THICKNESS 8.0 mm (0.3″) *WEIGHT 0.88kg *PRODUCT VARIANTS 8610-02 – 8610 MKII Synchronising & Load Sharing Control Module (Ct, Rtc) |
| CONTINUOUS VOLTAGE RATING | 8 V to 35 V Continuous | |
| GENERATOR | VOLTAGE RANGE | 15 V – 333 V AC (L-N) |
| FREQUENCY RANGE | 3.5 Hz to 75 Hz | |
| OUTPUTS | OUTPUT A (FUEL) | 15 A DC at supply voltage |
| OUTPUT B (START) | 15 A DC at supply voltage | |
| AUXILIARY OUTPUTS E,F,G,H,I & J | 2 A DC at supply voltage |

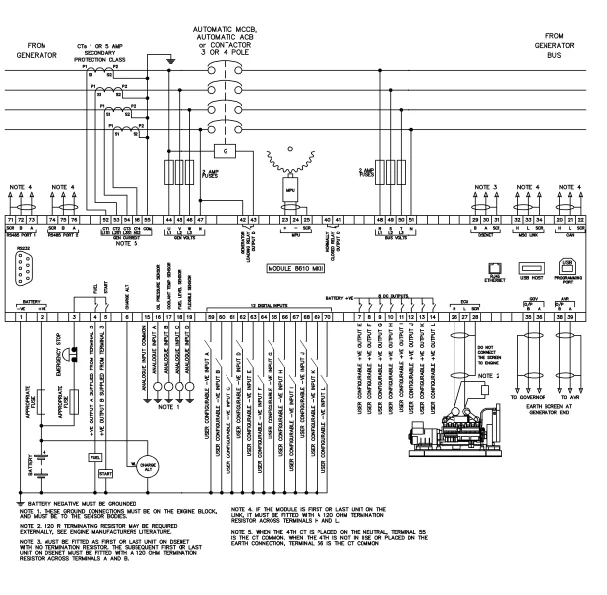

Connection Diagram
