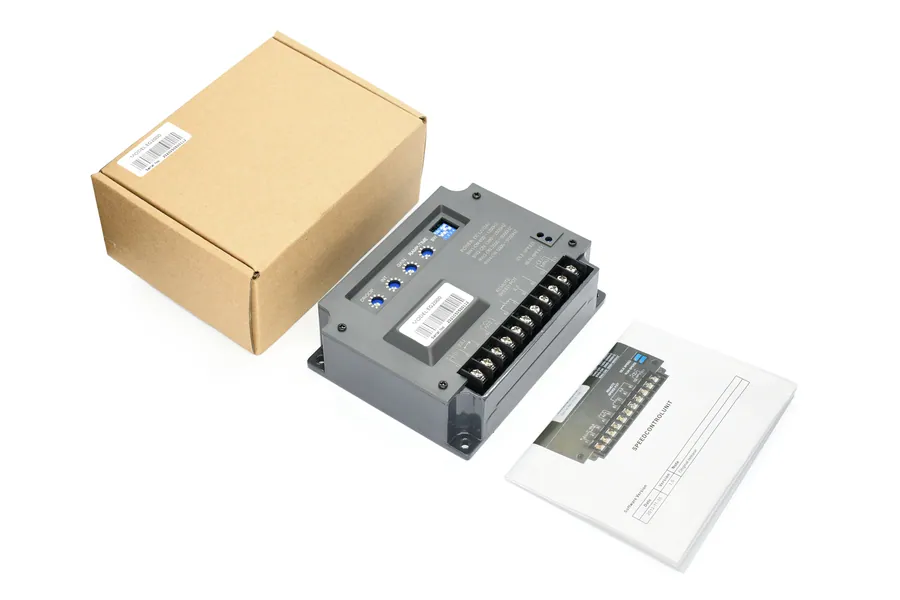

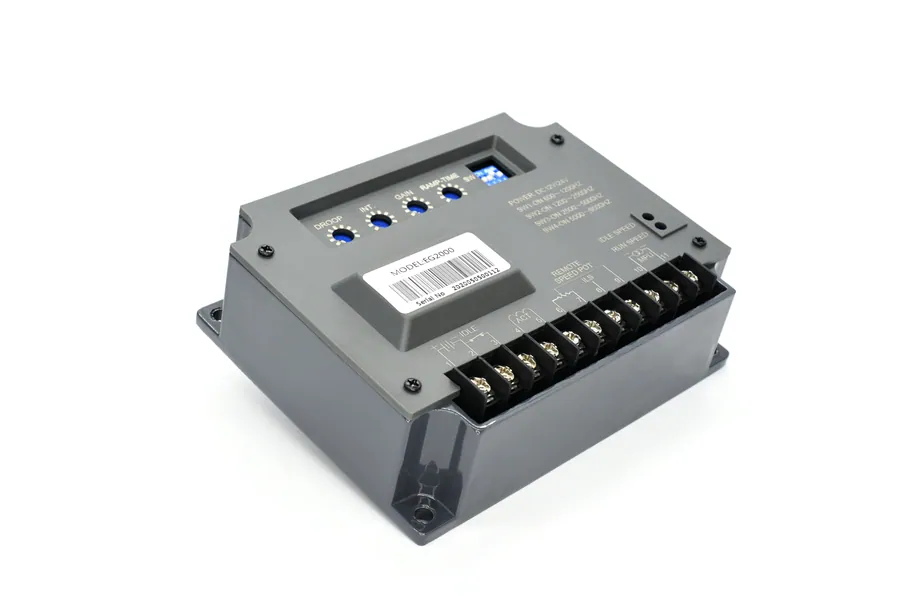

Name: GAC Engine Speed Control Unit Speed Controller Droop Governor EG2000
Brand: POPULACE
SKU: EG2000

Warranty

13 months

Place of Origin

Fujian, China

Brand Name

POPULACE

Model Number

EG2000

Working Voltage

10-32V DC

Output Current Range

Continuous 7A. Max. 15A for 10s

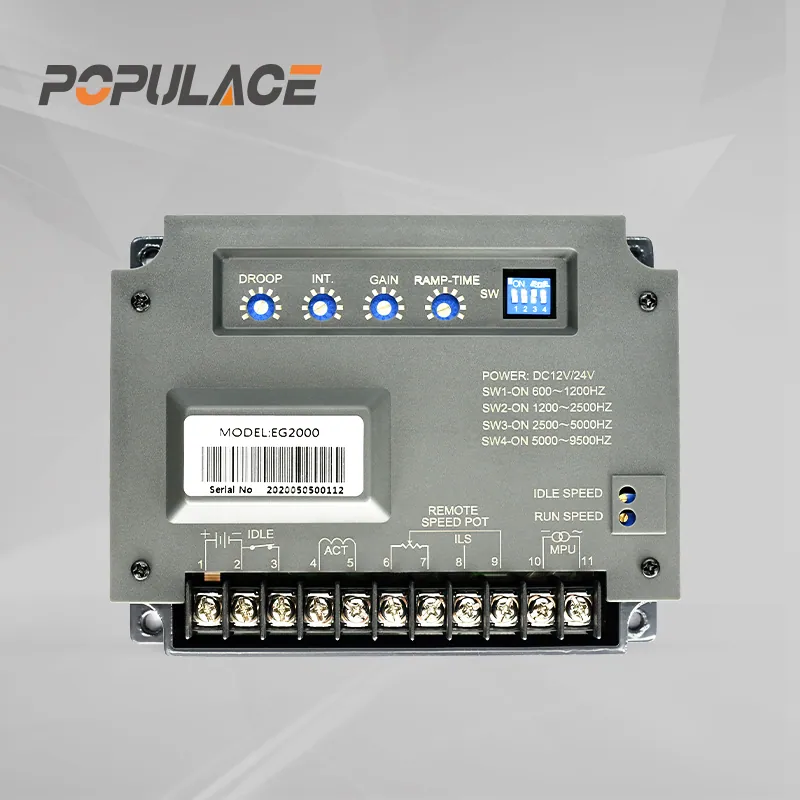

GAC Engine Speed Control Unit Speed Controller Droop Governor EG2000

GAC Engine Speed Control Unit Speed Controller Droop Governor EG2000

The EG2000 is a universal generator governor / engine speed controller equipped

with Smoke Limiting, & Idle Speed. Suitable for diesel, gas and natural gas engines with

Built-in & Non-Built-in PTs Pumps, also can be used with Low Current, Electric over

Hydraulic Oil Pumps Type Governor Actuators.

Features

*Works on a wide ranges of MPU/flywheel frequencies

*15 Amp Max Output

*Suitable for all types of diesel and Gas engines

*High Sensitivity and stable at Low Frequency Variations

*Moisture, vibration, and rust protected, Epoxy encapsulated electronics

*For Use With Isochronous Generators & Automatic Paralleling PLC controls

*Idle Speed Adjustment and connections for a Remote Speed POT

EG2000
Operating Voltage	12 or 24 VDC ±20%
Output Current	0.5 ~ 15 A
Run Speed Adjustment range	Speed adjustment Potentiometer (30 turn); 4 Segment Dip Switch Adjustable From 600 ~ 9500 Hz.
Idle Speed Adjustment Range	Run Speed 30 ~ 85%
Ramp Time	3 ~ 20 Sec
Remote Speed Pot	Ext. Remote speed pot terminal 6, 7, 8 (ILS) and 6, 7, 9 Connect a 5K potentiometer ±5% adjustment range.
Temp. Stability	<0.01%
Run Speed Stability	± 0.25 % at steady state
MPU input signal	1 ~ 120VAC RMS
Droop	4.00%
Adjustment	Run Speed, Idle Speed, Ramp Time, Droop, Integration, Gain
Mechanical Vibration	1G @ 18 ~ 30 Hz, 2.5G @ 48 ~ 70 Hz
Relative Humidity	< 95%
Operating Temperature	-40 ~ 85°C
Storage Temperature	-40 ~ 85°C
Dimensions	147mm L * 114mm W * 50mm H
Weight	690g ± 2%
