GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E
Model: ESD5500E
Compatible ESD5500E engine speed control unit for generator sets. Request a setup check with your engine and actuator details before ordering.
| Warranty | 13 months |
|---|---|
| Place of Origin | Fujian, China |
| Brand Name | POPULACE |
| Model Number | ESD5500E |
| Supply | 12 or 24 VDC battery system (verify exact wiring before installation) |
| Wiring-diagram fuse marking | 15 A max (fuse label; not a controller output-current rating) |
| MOQ | 1 pc |
| Lead time | 2-3 days after payment (in stock), 3-7 days for production batches |
Applications
- Mechanical and electronic speed control of GAC diesel engines driving generator sets
- Prime-power sets where load steps demand fast, stable frequency recovery
- Pump and compressor engine packages requiring droop or isochronous governing
Product Description

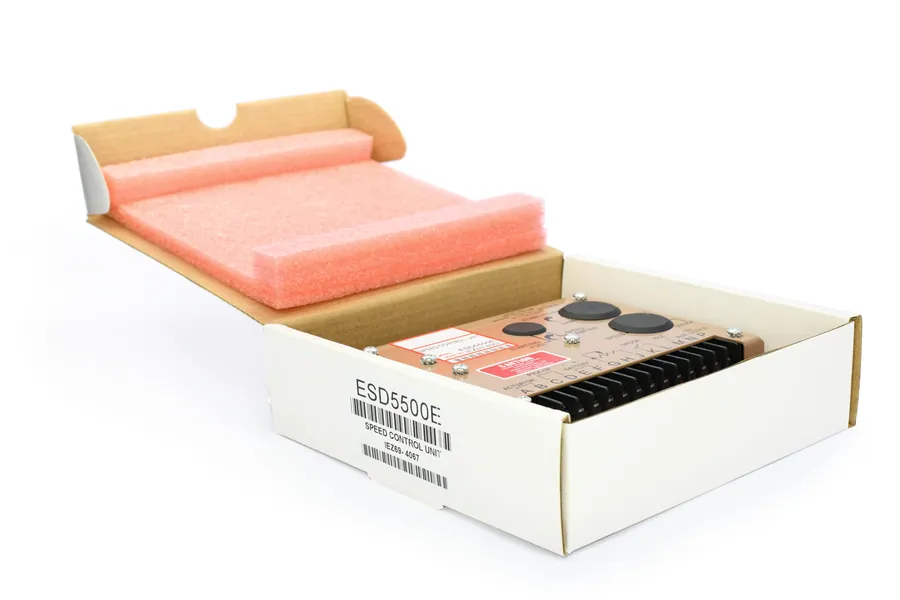

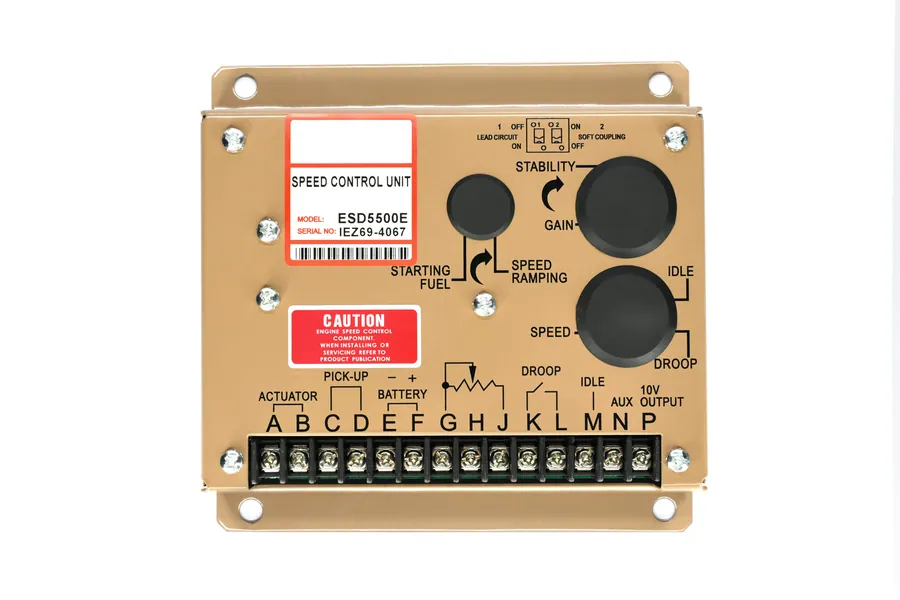

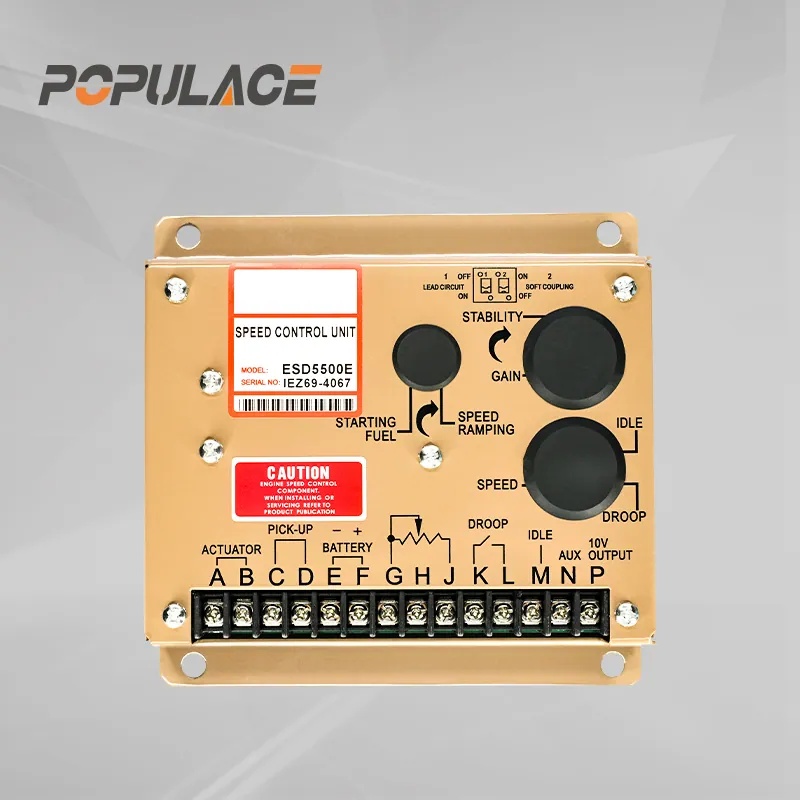

GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E
 | GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E The Genset Speed Controller ESD5500 is rugged enough to be placed in a control cabinet or engine mounted enclosure with other dedicated control equipment. If water, mist, or condensation may come in contact with controller, Generator Speed Governor ESD5500 should be mounted vertically. This will allow the fluid to drain away from the speed control unit. |
 | Features *Speed Sensor Signal: 0.5-120 Volts RMS *Isochronous Operation/Steady State Stability: ±0.25% or better *Speed Range/Governor: 1K to 7.5K Hz continuous *Speed Drift with Temperature: ±1 Max *Idle Adjust CCW: Less than 1200 Hz. *Droop Range: 1-5% regulation |
| Product Name | GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E | |
| Input | Supply | 12 or 24 VDC Battery System (Transient and Reverse Voltage) |
| Polarity | Negative Ground (Case Isolated) | |
| Power Consumption | 50 ma continuous plus actuator current | |
| Actuator Current Range @ 25 Deg. C – (Inductive Load) | Not stated in the available ESD5500E source; confirm the actuator model and its wiring requirements before selection. | |
| Vibration | 1G at 20 to 100 Hz. |
Before Replacing a Speed Governor
Generator frequency follows engine speed. If frequency falls or hunts under load, first record the engine speed and frequency together with the load, engine model, actuator label and magnetic-pickup details. This helps distinguish a governor setup issue from an engine, load or sensor problem. Do not change governor settings or wiring based only on symptoms; use the exact unit and actuator publications.
For a setup review, request a compatibility check with your engine and actuator details. Existing WhatsApp and email contact options are also available on this page.
There are no reviews yet.
Be the first to review “GAC Engine Speed Control Unit Speed Controller Droop Governor ESD5500E”
Your email address will not be published. Required fields are marked *
Related Products
Compatible generator parts & matching system accessories.
Technical Guides & Troubleshooting
Engineering diagnostics, terminal wiring diagrams, and parts replacement procedures.
Generator Engine Hunting: How to Diagnose Governor Instability
Hunting - the engine speed oscillating in a steady rhythm - is a governor-loop problem, not an engine problem. Work outside-in: linkage free play first, then sensor signal, then the controller’s gain and droop settings.
Read Guide → Engineering GuideDiesel Generator Parts Catalog & OEM Replacement Selection Guide
A practical guide to selecting compatible diesel generator replacement parts, covering AVRs, control modules, speed governors, fuel shut off solenoids, and battery chargers.
Read Guide →FAQ
The ESD5500E is an electronic engine speed control unit. Share your engine model, rated speed, actuator model and wiring details so the setup can be checked before ordering.
The available wiring diagram contains a 15 A fuse marking and a note about adding a jumper for 12 V when actuator current is above 5 A. These are wiring instructions, not a confirmed continuous output-current rating. Please provide the actuator model for a setup check.
Not necessarily. Provide the engine model, speed/frequency readings, load condition, actuator model and magnetic-pickup details. The speed-control path should be checked before selecting a replacement.
Contact technical support with the exact controller and actuator labels. Confirm that documentation applies to your exact variant before wiring; the current public ESD5500E manual URL is unavailable.
Yes. Each unit is bench-run for response and droop linearity before dispatch, and the test record travels with your order.
governor ESD5500E is covered by a 13 months factory warranty. Quality issues within the term are replaced or repaired at our cost.
Yes. POPULACE Electronic Co., Ltd. manufactures generator parts in Xiamen, Fujian - factory visits are welcome.
Yes. Samples are available for testing; express freight (FedEx, DHL, UPS, TNT, Aramex) typically delivers within 3-7 days.
In-stock items ship 2-3 days after payment; larger batches are produced in 3-7 days. Sea, air or express shipping is arranged to your preference.
T/T, PayPal, Western Union, MoneyGram, Alibaba order link and RMB transfer are all supported.
